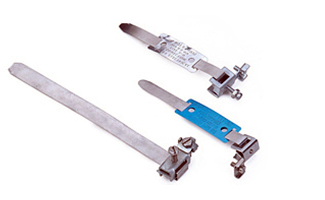

UK Type Adjustable Earth Clamps

UK Type Adjustable Earth Clamps
Product Name :-

UK Type Adjustable Earth Clamps

Product Category :-
Copper Grounding Earthing Accessories

Buy Sell



UK Type Adjustable Earth Clamps

High quality earthing clamps specially designed to connect the pipes to conductor for earthing.
Special features:-

  •     Designed & Manufactured under strict and approved quality control procedures, as per BS 951 standards.
  •     Available in 2 Colours.:
  •     Red for Non-corrosive dry atmosphere and Blue for corrosive humid conditions.
  •     Available in 3 standard Band Lengths to suit
  •     Pipe diameters of 12mm – 32mm, 32mm-50mm and 50mm-75mm
  •     Available in 2 Terminal Sizes:
  •     A-D for conductors of 2.5 mm2 – 10 mm2 and A-E for conductors of 2.5 mm2 – 16 mm2
    (A-E being identified by its Blue safety label)
Terminal Size Features Material Spec.
A-D 2.5 mm2- 10 mm2 Colour coded Red suitable for clean dry atmospheric conditions Brass
A-D 2.5 mm2- 10 mm2 Colour coded Blue suitable for all environment Phosphorus Bronze
A-D 2.5 mm2- 10 mm2 Colour coded Blue suitable for all environment Phosphorus Bronze
