Stainless Steel Washers Din 126

Stainless Steel Washers Din 126
Product Name :-

Stainless Steel Washers Din 126

Product Category :-
Stainless Steel Washers

Buy Sell



Stainless Steel Washers Din 126 |

Stainless-Steel-Washers-Din-126

d1 used for d2 s
5.5 M5 10 1
6.6 M6 12 1.6
7.6 M7 14 1.6
9 M8 16 1.6
11 M10 20 2
13.5 M12 24 2.5
15.5 M14 28 2.5
17.5 M16 30 3
22 M20 37 3
26 M24 44 4
30 M27 50 4
33 M30 56 4
36 M33 60 5
39 M36 66 5
42 M39 72 6
45 M42 78 7
48 M45 85 7
52 M48 92 8
56 M52 98 8
62 M56 105 9
66 M60 110 9
70 M64 115 9

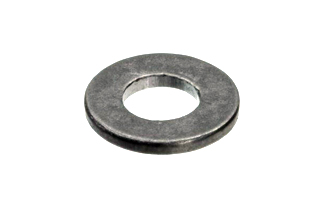

Stainless steel washer usually goes together with stainless steel bolt and stainless steel nut and screw on a machine or something like that. In general, the stainless steel washer looks like a plate with a hole which is nearly in middle.

Stainless steel washer in our company has following characters:

  • Materials of stainless steel washer:
  • carbon stainless steel washer : Q215,Q235, 15#,25#,45#, 35CrMo, 42CrMo,etc.
  • stainless steel washer has such models as : sus316, sus304, sus202, sus201, etc.

Stainless steel washer can be made according to the following standards: ISO, BS, DIN, JIN, ANSI, and AMSE.

In addition, Non-standards can be made in accordance with clients’ drawings or samples.Different specifications of stainless steel washer are available, for example: plain washers, washers with ball face, washers with cone face, washer with split.
