Product Name :-

Stainless Steel Male Connectors N

Product Category :-
Stainless Steel Straight Compression Fittings

Buy Sell



Stainless Steel Male Connectors N

Stainless-Steel-Male-Connectors-N

NPT(M) MM MM MM MM MM
3 1/8 30.5 2.4 11 11 23.9
3 1/4 35.6 2.4 14 11 29
6 1/8 32.8 4.8 14 14 25.4
6 1/4 37.9 4.8 14 14 30.5
6 3/8 38.4 4.8 19 14 31
6 1/2 44.7 4.8 20 14 37.3
8 1/8 34.2 4.8 14 16 26.7
8 1/4 38.7 6.3 14 16 31.2
8 3/8 39.3 6.3 19 16 31.8
8 1/2 45.6 6.3 22 16 38.1
10 1/8 36.3 4.8 17 19 28.7
10 1/4 40.9 7.9 19 19 33.3
10 3/8 40.9 7.9 19 19 33.3
10 1/2 46.5 7.9 22 19 38.9
12 1/4 43.4 7.1 22 22 33.3
12 3/8 43.4 9.5 22 22 33.3
12 1/2 49 9.5 22 22 38.9
12 3/4 50.5 9.5 27 22 40.4
12 1 57.1 9.5 35 22 47
14 3/8 44.1 9.5 24 25 34
14 1/2 49 11.1 24 25 38.9
16 3/8 44.1 9.5 24 25 34
16 1/2 49 11.9 24 25 38.9
16 3/4 50.5 12.7 27 25 40.4
18 1/2 50.5 11.9 27 30 40.4
18 3/4 50.5 15.1 27 30 40.4
20 1/2 52.3 15.9 30 32 42.2
20 3/4 57.1 18.3 35 32 42.2
25 1/2 57.5 11.9 35 38 45.2
25 3/4 57.5 15.8 35 38 45.2
25 1 62.3 21.8 35 38 50

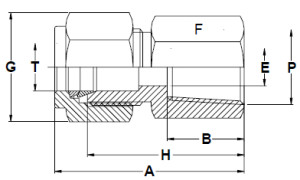

TUBE OD – T P A E F G H
NPT (M) MM MM MM MM MM
1/8 1/8 30.5 2.4 11 11 23.9
1/8 1/4 35.6 2.4 14 11 29
1/4 1/8 32.8 4.8 14 14 25.4
1/4 1/4 37.8 4.8 14 14 30.5
1/4 3/8 38.4 4.8 19 14 31
1/4 1/2 44.7 4.8 22 14 37.4
5/16 1/4 38.6 6.3 14 16 31.2
3/8 1/8 35.3 4.8 16 17 27.9
3/8 1/4 39.8 7.1 16 17 32.5
3/8 3/8 39.8 7.1 19 17 32.5
3/8 1/2 46.8 7.1 22 17 38.9
1/2 1/4 43.4 7.1 22 22 33.3
1/2 3/8 43.4 9.6 22 22 33.3
1/2 1/2 49 10.4 22 22 38.9
1/2 3/4 50.5 10.4 27 22 40.4
1/2 1 57.1 10.4 35 22 47
5/8 3/8 44.2 9.6 24 25 34
5/8 1/2 49 10.4 24 25 38.9
3/4 1/2 50.5 10.4 27 28.5 40.4
3/4 3/4 50.5 15.8 27 28.5 40.4
3/4 1 57.1 15.8 35 28.5 47
7/8 3/4 50.5 15.8 30 32 40.4
1 1/2 57.4 10.4 35 38 45.2
1 3/4 57.4 15.8 35 38 45.2
1 1 62.2 22.3 35 38 50
