Stainless Steel Compression Unions

Stainless Steel Compression Unions
Product Name :-

Stainless Steel Compression Unions

Product Category :-
Stainless Steel Straight Compression Fittings

Buy Sell



Stainless Steel Compression Unions | Stainless Steel Angular Fittings Cross

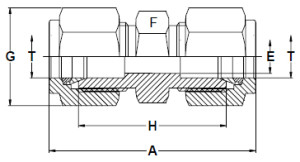

Stainless-Steel-Compression-Unions

A E F G H
MM MM MM MM MM MM
3 35.3 2.4 11 11 22.1
6 41 4.8 14 14 26.2
8 43.2 6.3 16 16 26.2
10 46.2 7.9 17 19 31
12 51.2 9.5 22 22 31
14 52 11.1 24 25 31
15 52 11.9 24 25 31.8
16 52 12.7 24 25 31.8
18 53.5 15.1 27 30 33.3
20 55 15.9 30 32 34.8
22 55 18.3 30 32 34.8
25 65 21.8 35 38 40.4
TUBE OD – T A E F G H
INCH MM MM MM MM MM
1/8 35.6 2.4 11 11 22.4
1/4 40.9 4.8 14 14 26.2
5/16 42.9 6.3 14 16 28.2
3/8 45 7.1 16 17 30.2
1/2 51.3 10.4 22 22 31
5/8 52 12.7 24 25 31.8
3/4 53.6 15.8 27 28.5 33.3
7/8 55.2 18.2 30 32 34.8
1 64.8 22.3 35 38 40.4
