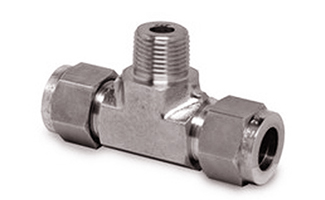

Stainless Steel Compression Male Branch Tee

Stainless Steel Compression Male Branch Tee
Product Name :-

Stainless Steel Compression Male Branch Tee

Product Category :-
Stainless Steel Angulars Fittings Tee

Buy Sell



Stainless Steel Compression Male Branch Tee


P A B E F G H Hx
mm NPT(M) mm mm mm mm mm mm MM
3 1/8 23.6 9.6 2.4 11 11 17 17.8
3 1/4 24.6 14.3 2.4 14 11 18 23.4
6 1/8 27 9.6 4.8 14 14 19.6 18.8
6 1/4 27 14.3 4.8 14 14 19.6 23.4
6 3/8 29.8 14.3 4.8 17 14 22.4 26.2
8 1/4 28.8 14.3 6.3 14 16 21.3 24.4
8 3/8 30.6 14.3 6.3 17 16 23.1 26.2
8 1/2 32.6 19.1 6.3 22 16 25.1 33
10 1/4 31.5 14.3 7.1 17 19 23.9 26.2
10 3/8 31.5 14.3 7.9 17 19 23.9 26.2
10 1/2 33.5 19.1 7.9 22 19 25.9 33
12 1/4 36 14.3 7.1 22 22 25.9 26.2
12 3/8 36 14.3 9.5 22 22 25.9 28.2
12 1/2 36 19.1 9.5 22 22 25.9 33
16 1/2 38 19.1 11.3 24 25 27.9 35.1
25 3/4 49.1 19.1 15.8 35 38 36.8 41.7
25 1 49.1 23.8 21.8 35 38 36.8 46.5
TUBE OD – T P A B E F G H Hx
INCH NPT(F) MM MM MM MM MM MM MM
1/8 1/8 23.6 9.6 2.4 11 11 17 17.8
1/8 1/4 24.6 14.3 2.4 14 11 18 23.4
1/4 1/8 26.9 9.6 4.8 14 14 19.6 18.8
1/4 1/4 26.9 14.3 4.8 14 14 19.6 23.4
1/4 3/8 29.7 14.3 4.8 17 14 22.4 26.2
1/4 2/4 31.8 19.1 4.8 22 14 24.4 33
3/8 1/4 30.5 14.3 7.1 17 17 23.1 25.4
3/8 3/8 31.2 14.3 7.1 17 17 23.9 26.2
3/8 1/2 33 19.1 7.1 22 17 25.9 33
1/2 1/4 36 14.3 4.8 22 22 25.9 28.2
1/2 3/8 36 14.3 9.6 22 22 25.9 28.2
1/2 1/2 36 19.1 10.4 22 22 25.9 33
5/8 1/2 38.1 19.1 11.9 22 25 27.9 35
3/4 1/2 39.9 19.1 11.9 27 29 29.7 36.8
3/4 3/4 39.9 19.1 15.8 27 29 29.7 36.8
1 3/4 49 19.1 15.8 35 38 36.8 41.6
1 1 49 23.8 22.3 35 38 36.8 46.5

NOTE:
THE PART NUMBERS GIVEN HERE ARE FOR TAPER MALE BRANCH TEE. CORRESPONDING PART NUMBERS FOR TAPER MALE RUN TEE CAN BE OBTAINED BY SUBSTITUTING ‘MRT’ FOR ‘MBT’.
