Stainless Steel Compression Cross Elbow

Stainless Steel Compression Cross Elbow
Product Name :-

Stainless Steel Compression Cross Elbow

Product Category :-
Stainless Steel Angular Fittings Cross

Buy Sell



Stainless Steel Compression Cross Elbow | Stainless Steel Angular Fittings Cross

Stainless-Steel-Compression-Elbows-cross1

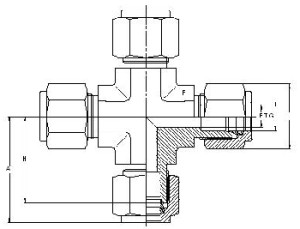

TUBE OD – T A E F G H
MM MM MM MM MM MM
3 22.3 2.4 11 11 15.7
6 27 4.8 14 14 19.6
8 28.8 6.3 16 16 21.3
10 31.5 7.9 17 19 23.9
12 36 9.5 22 22 25.9
16 39.8 12.7 24 25 27.9
22 44.6 18.3 32 32 34.5
25 49.1 21.8 35 38 36.8
TUBE OD – T A E F G H
INCH MM MM MM MM MM
1/8 22.4 2.4 11 11 15.8
1/4 26.9 4.8 14 14 19.6
3/8 30.5 7.1 17 17 23.2
1/2 36 10.4 22 22 25.9
3/4 39.9 15.8 27 28.5 29.7
1 49 22.3 35 38 36.8
