Stainless Steel Compression Bulkhead Unions

Stainless Steel Compression Bulkhead Unions
Product Name :-

Stainless Steel Compression Bulkhead Unions

Product Category :-
Stainless Steel Straight Compression Fittings

Buy Sell



Stainless Steel Compression Bulkhead Unions

Stainless-Steel-Compression-Bulkhead-Unions

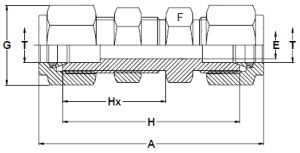

 TUBE OD – T A E F G H Hx
MM MM MM MM MM MM MM
3 51.3 2.4 14 11 38.1 24.6
6 57.7 4.8 16 14 42.9 26.2
8 61 6.3 17 16 46 28.6
10 63.7 7.9 22 19 48.5 29.4
12 71 9.5 24 22 50.8 31.8
14 72.5 11.1 27 25 52.3 32.5
15 72.5 11.9 27 25 52.3 32.5
16 72.5 12.7 27 25 52.3 32.5
18 78.9 15.1 30 30 58.7 37.3
20 84.5 15.9 35 32 64.3 42.9
25 95.6 22.3 35 38 71.3 45.2
TUBE OD – T A E F G H Hx
INCH MM MM MM MM MM MM
1/8 51.3 2.4 11 11 38.1 24.6
1/4 57.6 4.8 16 14 43 26.2
5/16 60.7 6.3 17 16 46 28.5
3/8 62.2 7.1 22 17 47.5 29.5
1/2 71.1 10.4 24 22 50.8 31.8
5/8 72.6 12.7 27 25 52.3 32.5
3/4 79 15.8 30 28.5 58.6 37.4
1 95.6 22.3 35 38 71.3 45.2
