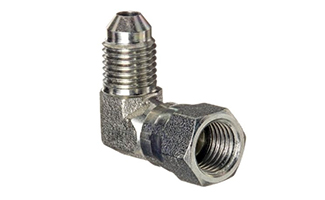

Stainless Steel 37 Degree Flare Female Elbows

Stainless Steel 37 Degree Flare Female Elbows
Product Name :-

Stainless Steel 37 Degree Flare Female Elbows

Product Category :-
Stainless Steel Angular Fittings – Elbow

Buy Sell



Stainless Steel 37 Degree Flare Female Elbows |

Stainless-Steel-37-Degree-Flare-Female-Elbows

TUBE OD UN / UNF THREAD
NPT/NPTF
S L L2 D
MM INCH N N2 MM MM MM MM
6 1/4 7/16 -20 1/8 -27 14 27.4 16.8 4.4
6 1/4 7/16 -20 1/4 -18 19 31 22.3 4.4
8 5/16 1/2 -20 1/8 -27 14 27.4 16.8 6
8 5/16 1/2 -20 1/4 -18 19 28.7 22.3 6
10 3/8 9/16 -18 1/8 -27 14 31.2 17 7.5
10 3/8 9/16 -18 1/4 -18 19 31.2 22.3 7.5
10 3/8 9/16 -18 3/8 -18 22 33.3 25.9 7.5
12 1/2 3/4 -16 1/4 -18 19 36.1 25.6 9.9
12 1/2 3/4 -16 3/8 -18 22 36.1 25.9 9.9
12 1/2 3/4 -16 1/2 -14 27 38.7 31.2 9.9
14/15/16 5/8 7/8 -14 1/2 -14 27 41.7 31.2 12.3
18/20 3/4 1 1/16 -12 1/2 -14 27 48 34.3 15.5
18/20 3/4 1 1/16 -12 3/4 -14 33 48 34.5 15.5
25 1 1 5/16 -12 1 -11.5 41 55.1 41.4 21.5
28/30/32 1 1/4 1 5/8 -12 1 1/4 -11.5 48 59.2 43.2 27.5
