Ring Type Tinned Non Insulated Copper Terminals

Ring Type Tinned Non Insulated Copper Terminals
Product Name :-

Ring Type Tinned Non Insulated Copper Terminals

Product Category :-
Copper Lugs Terminals

Buy Sell



Ring Type Tinned Non Insulated Copper Terminals

Our range of Ring Type Tinned Non Insulated Copper Terminals ends is appreciated owing to the following advantages:-

  • Safe & low cost both in and use.
  • All copper products are electro-tinned to BS standard and Wis prevents it from corrosion and oxidation.
  • PVC insulation is provided to terminals for exceptional di-electric strength & for supporting We wire insulation at the base of the terminal thereby ensuring that no bare wire is exposed It also provides circumferential insulation support to the wire and prevents the loss of connects due to vibration, or flexing in use.
  • Entry to the wire barrel is shock-proof, or bell mouthed for faster and easier conductor entry.

All the products are manufactured under strict quality control and confirm fly to the specification and requirements.

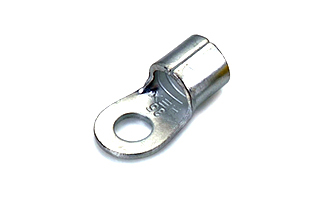

Ring Type Tinned Non Insulated Copper Terminals :-
ring-type-tinned-copper-cable-terminal-ends-non-insulated
Specification :- E. C. Grade 99. 9% iscs
Ring Type Tinned Non Insulated Copper Terminals Specification :-

Cable mm2 Stud Hole E Ring Type Tinned Non Insulated Copper Terminals Dimensions
A C D F B H L-1 J
50 8.2 10.5 14.1 18 1.8 16 12 34 43
10.2 10.5 14.1 24 1.8 16 14 36 48
12.7 10.5 14.1 24 1.8 16 14 36 48
16.2 10.5 14.1 32 1.8 16 15 38 54
70 10.2 12 16 22 2 18 11 36 47
12.7 12 16 22 2 18 11 36 47
16.2 12 16 28 2 18 16 40 54
95 10.2 13.5 18.1 24 2.3 20 12 38 50
12.7 13.5 18.1 24 2.3 20 12 38 50
16.2 13.5 18.1 28 2.3 20 17 44 58
120 12.7 15 20.2 26 2.6 22 7 39 52
20.3 15 20.2 40 2.6 22 20 52 72
150 16.2 16.5 23.7 40 3.6 24 20 54 74
20.3 16.5 23.7 40 3.6 24 20 54 74
