Mechanical Connectors offset Tongue Terminals

Mechanical Connectors offset Tongue Terminals
Product Name :-

Mechanical Connectors offset Tongue Terminals

Product Category :-
Copper Lugs Terminals

Buy Sell



Copper Mechanical Connectors offset Tongue Terminals

  • They are manufactured from sot drawn bare copper tube as per BS-1977 and aluminum to obtain high electrical & mechanical strength. They are used for straight through joints for joining of cable conductors
  • Reducers or copper pin terminals are produced to meet the needs of cable entering, Copper tunnel clamps such as fine gears, Cutouts, Meters

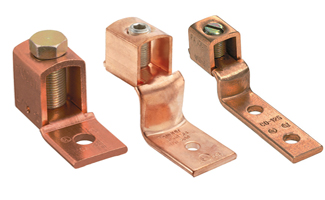

Copper Mechanical Connectors offset Tongue Terminals :-
copper-one-hole-offset-tongue-termina-ends-connectors
Copper Mechanical Connectors offset Tongue Terminals specification:-

Copper
Conductor
Size Ran.
Screw
Hex Size
Copper Mechanical Connectors offset Tongue Terminals
Dimensions (mm)
F E D G K H T
10-14 Slotted 26 12 7 5.3 6.5 7.95 9.5
6-14 & List Comb. (A) Slotted 31.5 15 11 5.6 11 9.5 12.3
2-8 & List Comb. (B) Slotted 39.5 20.5 12.7 6.35 14.2 12 16.3
1 / 0-6 Slotted 50.5 26 15.5 10.75 19 15.85 23.3
3 / 0-4 3/16″ 56 30 18 11 20 19 26.5
4 / 0-2 7/32″ 65 33.8 24.5 13 26 25.2 29.75
350 MCM 1 AWG 8 mm 72 34 31 13.1 26.2 25.2 35.7
*500 MCM – 1/0 8 mm 104 56.5 36 23 35.5 38 41
*1000 MCM -600 MCM 3/8″ 123 62 57 28.5 42 50 59
