Product Name :-

Long Barrel Copper Terminals lugs

Product Category :-
Copper Lugs Terminals

Buy Sell

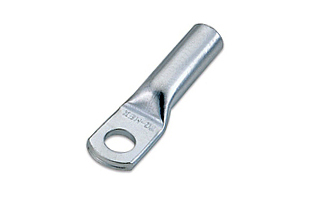

Long Barrel Copper Terminals lugs
We offer Long Barrel Tinned Copper Cable Terminal Ends in copper finish of Electro Tinned to BS 18721984 (1984). Manufactured under strict quality control and confirm to the specification and requirements of our clients.

Applications of Long barrel copper cable Terminal
  • Electricity Boards: Generation, Distrubution
  • Electrical Industries: Control panels, Switch gears, Transformers, Circuit breakers
  • Projects & Industrial for Electrical applications: Shipping, Automobile, Steel & Fertilizers, Chemical, Cement and Textile, Chemical Electronics, Mining Aeronautics, Satellite and Communications

Long Barrel Copper Terminals lugs :-
long-barrel-tinned-copper-cable-terminal-ends
Long Barrel Copper Terminals lugs size:-

Cable mm2 Stud Hole E Long Barrel Copper Terminals Lugs Dimensions
A C D F G H B J
6 8.4 3.8 5.5 12 1 6 9 11 29
10 8.4 4.5 6.2 12 1.2 6 9 11 29
16 8.4 5.4 7.1 12 1.4 7 7 15 35
25 8.4 6.8 8.8 16 2 7 7 15 35
35 8.4 8.2 10.6 15.3 2.4 9 9 15 38
50 13 9.5 12.4 18 2.9 10 11 20 47
70 13 11.2 14.7 21 3.5 12 13 22 54
95 13 13.5 17.4 25 3.9 13 13 24 59
120 13 15 19.4 28 4.4 14 14 27 65
150 13 16.5 21.2 30 4.7 16 16 32 75
185 13 18.5 23.5 34 5 17 17 39 85
240 17 21 26.5 38 5.5 20 20 46 100
300 21 23.5 30 43 6.5 22 22 51 110
400 21 28.5 36.5 50.1 8 26 26 53 123
500 21 30 39 56 9 28 28 58 134
