Copper Cable lugs Terminals Light Duty

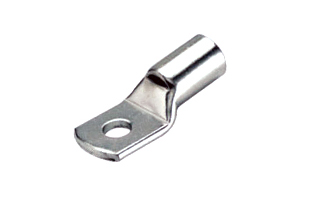

Copper Cable lugs Terminals Light Duty are made of electrolytic copper. Cable lugs come in bare or tin plated finish. Copper Cable lugs Terminals Light Duty are pressed, forged and machined to achieve the desired size and shape. Copper Cable lugs Terminals Light Duty come in various size ranging from 1.5 sq.mm to 600 sq.mm.
Copper Cable lugs Terminals Light Duty :-
Cable-lugs-Terminals-Light-Duty
Copper Cable lugs Terminals Light Duty Size:-

Cable Size
SQ. mm
Stud Hole
E
Copper Cable lugs Terminals Light Duty Dimensions – mm
A C D F G H B J
1.5 4.2 1.8 3.7 8 1 4 5 5 16
1.5 5.2 1.8 3.7 8 1 4 5 5 16
1.5 6.5 1.8 3.7 8 1 4 5 5 16
2.5 4.2 2.4 4.0 8 1 4 5 7 18
2.5 5.2 2.4 4.0 10 0.8 5 6 7 20
2.5 6.5 2.4 4.0 10 0.8 5 6 7 20
4 4.2 3.1 4.8 10 1 5 6 7 20
4 5.2 3.1 4.8 10 1 5 6 7 20
4 6.5 3.1 4.8 10 1 5 6 7 20
6 5.2 3.8 5.5 10 1.2 5 6 9 23
6 6.5 3.8 5.5 10 1.2 5 6 9 23
6 8.2 3.8 5.5 12 1 6 9 9 27
10 6.5 4.5 6.2 12 1.2 6 7 9 25
10 8.2 4.5 6.2 12 1.2 6 9 9 27
10 10.5 4.5 6.2 15 1.4 8.5 10.5 10 32
16 6.5 5.4 .1 12 1.4 7 7 12 30
16 8.2 5.4 7.1 12 1.4 7 9 12 32
16 10.5 5.4 7.1 15 1.0 8 12 12 36
16 12.7 5.4 7.1 16 1.0 8 12 12 36
25 6.5 6.8 8.8 13 2 6 7 14 30
25 8.2 6.8 8.8 13 2 6 7 14 30
25 10.5 6.8 8.8 16 1.6 9 11 14 37
25 12.7 6.8 8.8 18 1.2 11 13 14 41
35 6.5 8.0 10.0 15 2.0 9 9 14 35
35 8.4 8.0 10.0 15 2.0 9 9 14 35
35 10.5 8.0 10.0 15 2.0 9 9 14 35
50 6.5 9.2 11.2 16 2.0 10 11 19 43
50 8.4 9.2 11.2 16 2.0 10 11 19 43
50 10.5 9.2 11.2 16 2.0 10 11 19 43
50 12.7 9.2 11.2 16 2.0 10 11 19 43
70 8.4 11.5 13.8 20 2.3 12 13 21 50
70 10.5 11.5 13.8 20 2.3 12 13 21 50
70 12.7 11.5 13.8 20 2.3 12 13 21 50
95 8.4 12.8 15.6 23 2.8 13 13 23 55
95 10.5 12.8 15.6 23 2.8 13 13 23 55
95 12.7 12.8 15.6 23 2.8 13 13 23 55
95 14.7 12.8 15.6 23 2.8 13 13 23 55
120 8.2 14.8 17.8 26 3.0 14 14 25 60
120 10.5 14.8 17.8 26 3.0 14 14 25 60
120 12.7 14.8 17.8 26 3.0 14 14 25 60
120 17.0 14.8 17.8 26 3.0 14 14 25 60

Copper Cable lugs Terminals Light Standard:-

Cable Size SQ. mm Stud Hole E Copper Cable lugs Terminals Light Duty Dimensions – mm
A C D F G H B J
150 8.4 16.0 19.6 28 3.0 16 16 30 69
150 10.5 16.0 19.6 28 3.6 16 16 30 69
150 12.7 16.0 19.6 28 3.6 16 16 30 69
150 14.7 16.0 19.6 28 3.6 16 16 30 69
150 17.0 16.0 19.6 28 3.6 16 16 30 69
185 10.5 18.0 22.0 32 4.0 17 17 36 78
185 13.0 18.0 22.0 32 4.0 17 17 36 78
185 14.7 18.0 22.0 32 4.0 17 17 36 78
185 17.0 18.0 22.0 32 4.0 17 17 36 78
240 10.5 22.0 26.0 38 4.0 20 20 42 92
240 13.0 22.0 26.0 38 4.0 20 20 42 92
240 14.7 22.0 26.0 38 4.0 20 20 42 92
240 21.0 22.0 26.0 38 4.0 20 20 42 92
300 13.0 24.0 28.7 42 4.7 22 22 46 101
300 14.7 24.0 28.7 42 4.7 22 22 46 101
300 17.0 24.0 28.7 42 4.7 22 22 46 101
300 21.0 24.0 28.7 42 4.7 22 22 46 101
400 14.7 28.0 33.2 49 5.2 26 26 49 114
400 17.0 28.0 33.2 49 5.2 26 26 49 114
400 21.0 28.0 33.2 49 5.2 26 26 49 114
500 14.7 30.0 36.0 53 6.0 28 28 53 124
500 17.0 30.0 36.0 53 6.0 28 28 53 124
500 21.0 30.0 36.0 53 6.0 28 28 53 124
630 17.0 35.0 41.5 61 6.5 33 33 61 144
630 21.0 35.0 41.5 61 6.5 33 33 61 144
