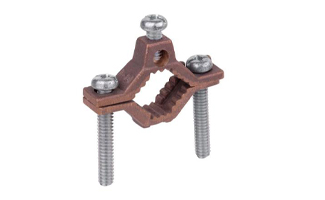

Copper Bronze Ground Rod Pipe Clamps

Copper Bronze Ground Rod Pipe Clamps
Product Name :-

Copper Bronze Ground Rod Pipe Clamps

Product Category :-
Copper Grounding Earthing Accessories

Buy Sell



Copper Bronze Ground Rod Pipe Clamps features include:

  • Direct burial electrical clamps are cast  from Copper alloy bronze of high strength, high conductivity copper alloy
  • Copper ground pipe clamps grounding connectors Bronze Clamps ground pipe clamps made  as per  UL 467 (Grounding and Bonding Equipment)
  • For connecting grounding conductors to water pipe, copper tubing or ground rod
  • UL Direct Burial ground pipe clamps have screws made of Stainless Steel and are UL listed for direct burial in earth or concrete
  • All our Dimension Measurements = Inches
  • packing : 10 pieces in a bag
  • Minimum Order Qty = 5000
Code No Water Pipe OD size Range Electrical Wire Range Screw Thread UNC Stainless steel 304 Box Qty
CPC1/2 1/2” – 1” 2-10 1/4-20 25
CPC11/4 1-1/4” – 2” 2-10 5/16-18 10

Main Features Of Copper Ground Clamps Ground Pipe Clamps Bronze Grounding Clamps Rebar Ground Clamps

Features:-

  • Manufactured from High Strength High Conductivity Cast Copper Alloy bronze Alloy Aluminium bronze Gunmetal Alloy
  • Stainless Steel machine screws for DIRECT BURIAL
  • For Water Pipe, Ground Rod, Copper Tubing applications
  • UL Direct Burial ground pipe clamps earth clamps have screws made of Stainelss Steel and are UL listed for direct burial in earth or concrete
  • Also availble grounding pipe clamps with LAY IN features
  • Heavy duty Internal Serrations for improved clamping and overall earth contact integrity

Other Features:-

  • Pipe Size 1 /2″, 3/4″, 1″
  • Wire range: # 10 AWG – # 2 AWG
  • Screw threads: 1/4″ UNC x 21 mm long
  • Temperature Rating    Amp Rating Voltage Rating  Flammability Rating: 600
  • Construction diameters: Width: 2.245″  x Height: 1.639″
